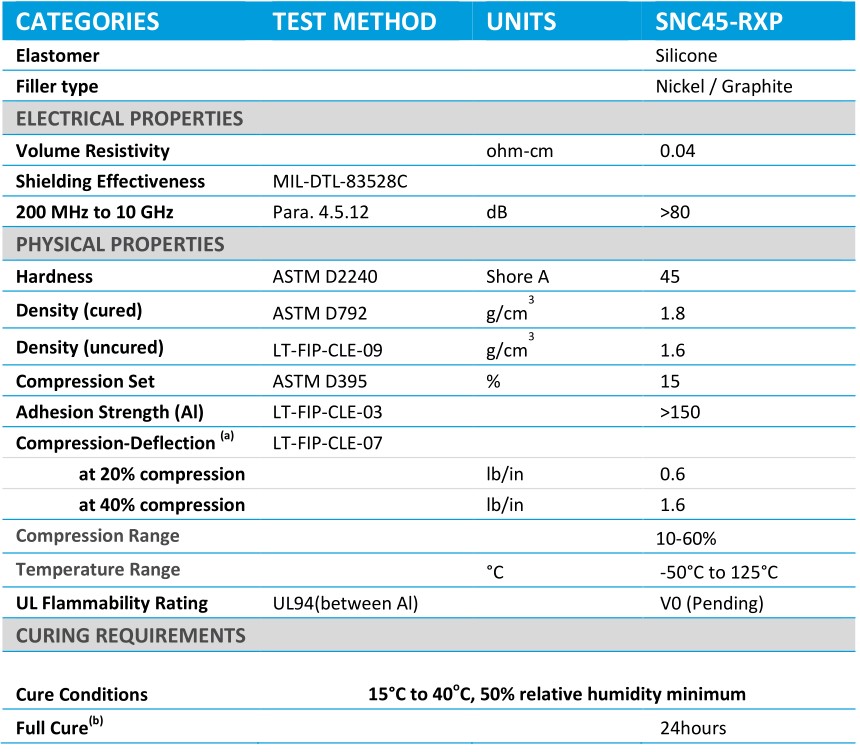

SNC45-RXP FORM-IN-PLACE

An Ultra-soft, nickel/graphite filled silicone elastomer Form-In-Place gasket material.SNC45RXP is a Nickel/ Graphite filled silicone paste with very low hardness which contributes to relatively low compression force when it is used as dispensed gaskets in between of chassis and cover. It is also designed to be used under high compression rate up to 60% so that the gaskets can compensate large tolerance of substrates. It also has good shielding performance with balanced mechanical properties. This grade end in a very cost effective FIP solution through its low density and fast dispensing speed.

Laird’s Form-In-Place is an automated system for dispensing conductive elastomer EMI shielding and grounding gaskets onto metal or plastic substrates. This product is particularly ideal for base stations, PDAs, PC cards, radios, mobile phones, as well as many other cast or plastic enclosures and packaged electronic assemblies.

All Laird Paste can be dispensed to triangle shape cross section directly.
