HYBRID THERMAL/EMI ABSORBER

CoolZorb‐Ultra series is a higher performance and silicone free hybrid absorber/thermal management material with ultra‐high thermal conductivity of 11.5W/m.K. CoolZorb‐Ultra is designed to be used like a traditional thermal interface material between heat source such as a high‐power IC and heat sink or other heat transfer device or metal chassis. CoolZorb‐Ultra also functions to suppress unwanted energy coupling, resonances or surface currents causing board level EMI issues.

FEATURES AND BENEFITS

• Very high thermal conductivity to meet industry trend of increasing IC power

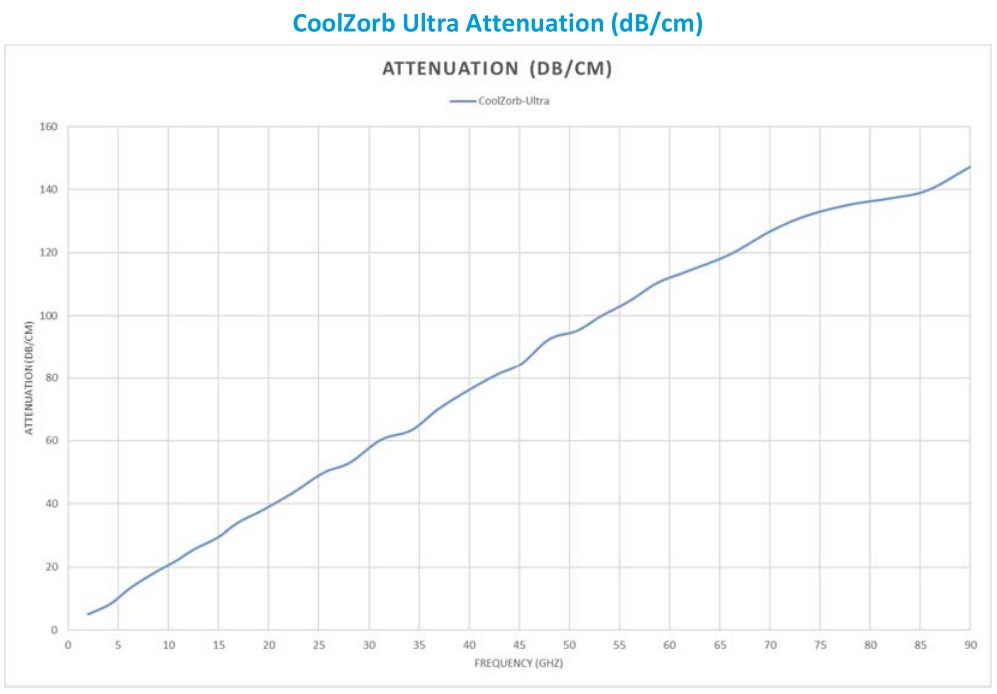

• Good EMI suppression over wide frequency range, particularly over 60GHz

• Silicone free formulation make it suitable for silicone sensitive application

• Inherent surface tack typical of standard thermal gap fillers

• Compliant with minimal component stress during assembly

• CoolZorb Ultra passes UL94V0 requirements

VALUE

• Performance advantage comes from dual functional properties of thermal conductivity and EMI reduction

• Improved reliability performance of electronics

  – Better signal integrity due to reduction of EMI

  – Consistent performance of electronics due to temperature stability and low outgassing properties of product

• Improved EMC performance to meet compliance requirements

• Environmentally friendly solution that meets regulatory requirements including RoHS  and REACH

AVAILABILITY

• Standard sheet size is 18” X 18”

• Thickness availability range is 0.040” ‐ 0.20” (1mm‐ 5mm)

• Thickness available on special request 0.020” (0.5mm) o Requires peel and stick application

• Common standards for thickness are available with 0.02” incremental.

• No charge samples are available in 4” X 4” size for each of the above common thicknesses

PART NUMBER SYSTEM

• PRODUCTION sheets (18”X18”) use the following designation when ordering:  A18181‐XXX where XXX is the sheet thickness in thousandths of an inch, example A18181‐040 for 0.040”x18”x18”

• SAMPLE sizes of 0.020”, 0.030”, 0.040”, 0.060” and 0.080” thicknesses are available without charge.  4” x 4” pieces are ordered with the part numbers A18183‐020, A18183‐030, A18183‐040, A18183‐060 and A18183‐080.  Other sizes may be available with NRE charge
