MID-PERFORMANCE GAP FILLER WITH 1.8 W/MK

Tflex™ HR400 is a cost-effective and compliant gap filler thermal interface material with excellent thermal performance and great handling for mass-production applications.

 The low modulus interface pad conforms to component topography, resulting in little stress on the components, mating chassis or parts. The softness relieves mechanical stress from high stack-up tolerance and absorbs shock, resulting in improved device reliability. Tflex™ HR400’s recovery properties for applications requiring material rework result in continued mechanical integrity even after device rework and re-assembly.

Tflex™ HR400 is naturally tacky on both sides and requires no additional adhesive coating to inhibit thermal performance. The tack is designed to hold the pad in place during assembly and component transport. Tflex™ HR400 is electrically insulating, stable from -50ºC thru 160ºC, and meets UL 94V0 flame rating.

FEATURES AND BENEFITS

• Thermal Conductivity 1.8 W/mK

• Soft and Compliant

• Available in thicknesses from 0.020” thru 0.400” (0.5mm thru 10.2mm)

• Naturally tacky for adhesion during assembly and transport

APPLICATIONS

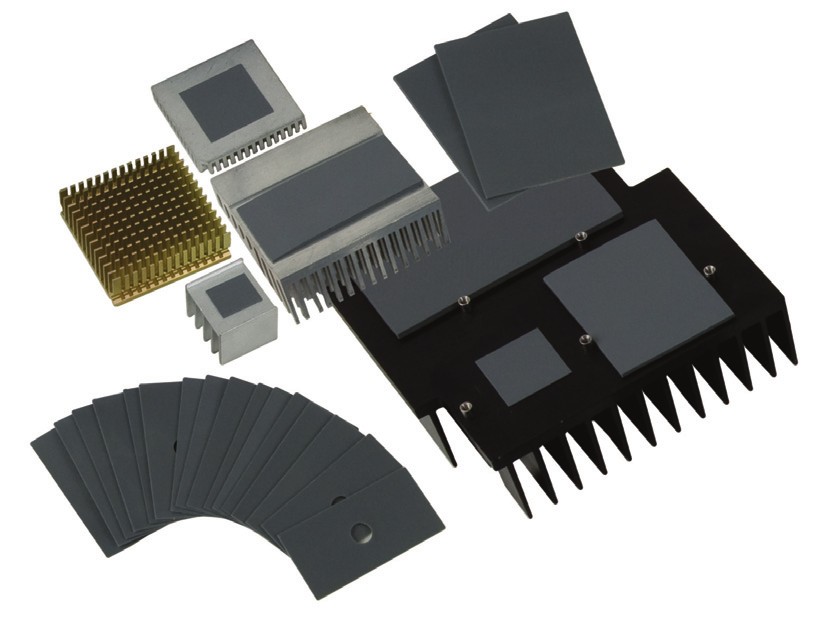

• Cooling components to chassis, frame, or other mating components

• Memory Modules

• Home and small office network equipment

• Mass storage devices

• Automotive electronics

• Telecommunication hardware

• Radios

• LED solid state lighting

• Power electronics

• LCD and PDP flat panel TV

• Set top boxes

• Audio and video components

• IT infrastructure

• GPS navigation and other portable devices

STANDARD THICKNESSES

Standard thickness is 0.020-inch (0.5 mm) through 0.400-inch (10.2 mm) and available in 0.010-inch increments.

Please contact Laird Technologies for availability of thicknesses above 0.200-inch.

OPTIONS

Fiberglass is standard in 0.020-inch and 0.030-inch thicknesses to aid in handling and is designated by the suffix “-FG”. Material is

standard with both sides tacky; the -DC1 suffix indicates only one side is tacky.

MATERIAL NAME AND THICKNESS

Tflex™ indicates Laird Technologies’ elastomeric thermal gap filler product line.

HR4XXX indicates Tflex HR400 product line with thickness in mils (0.001-inches); -DC1

indicates only one side tacky; -FG indicates fiberglass reinforcement.

Data for design engineer guidance only. Observed performance varies in application.

Engineers are reminded to test the material in application.
