PRODUCT DESCRIPTION

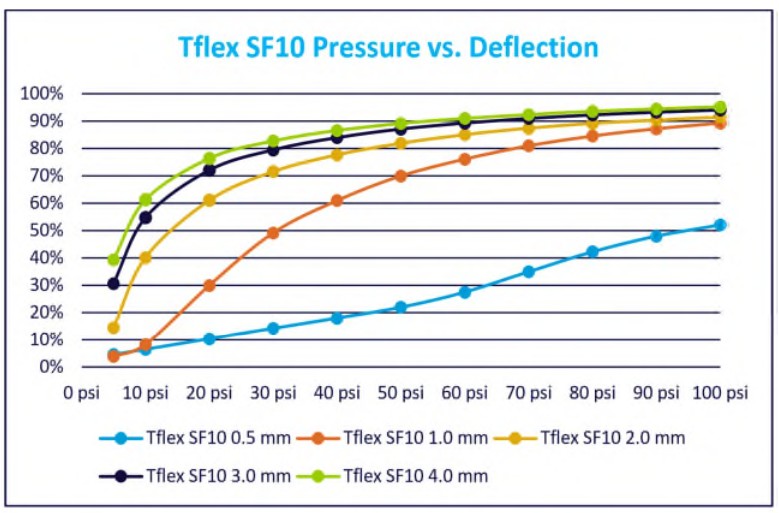

Tflex™ SF10 is an innovative, high performing thermal material in Laird’s gapfiller portfolio. This silicone free material measures 10 W/mk and has excellentdeflection properties which provides minimal pressure on components duringdeflection. Very little pressure is required to reach the lowest possible thermalresistance.

FEATURES AND BENEFITS

• Silicone free formulation

• Low peak and residual pressure

• Excellent surface wetting for low contact resistance

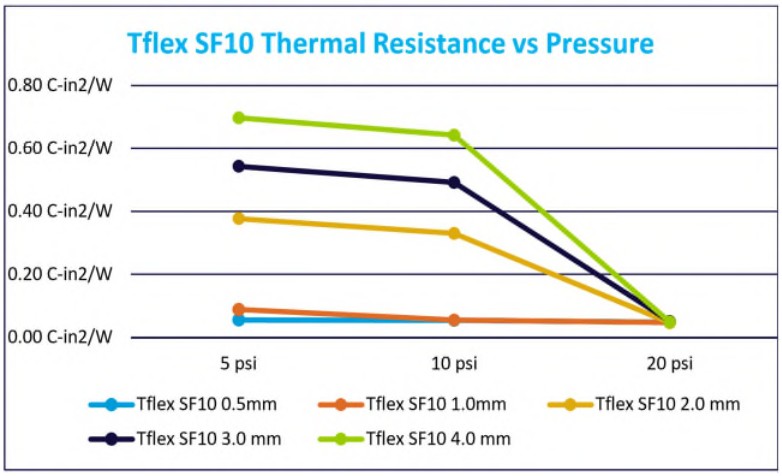

• Exceptionally low thermal resistance

• No Fiberglass reinforcement

• Environmentally friendly solution that meets regulatoryrequirements including RoHS and REACH

AVAILABILITY

• 0.50 mm (0.020”) to 4.0 mm (0.160”) thick material available in 0.25mm (0.010”) increments

• Available in standard sheet sizes of 18” x 18”, 9” x 9” or custom converted die cut parts

PART NUMBER SYSTEM

STANDARD THICKNESSES

• 0.25mm (0.010”) to 3.56mm (0.140”) thick material available in 0.25mm (0.010”) increments

• Available in standard sheet sizes of 18” x 18” and 9” x 9” or custom die cut partsOPTIONS

• DF – differential tack option available in thicknesses of 0.25 mm(0.010”) to 1.50mm(0.060”)

PART NUMBER SYSTEM

Tflex™ indicates Laird elastomeric thermal gap filler product line. SF10 is a silicone free 10 W/mk material. Thickness of the sheet in

mm is listed after the material name.

EXAMPLES:

• Tflex™ SF10,1.00 = 1.00mm thick Tflex SF10 material
