THERMALLY CONDUCTIVE ELECTRICALLY INSULATIVE MATERIAL

Tgard™ 5000 is an excellent dielectric material with good thermal performance consisting of a polyimide film coated with a ceramic-filled, high-temperature silicone rubber.

Tgard 5000 is ideal for applications that require a delta temperature across the interface of 2.0ºC/wattor higher on a TO-220 clip mounted @ 50 psi pressure. Tgard 5000 has high dielectric strength for the AC side of a switching mode power supply. Tgard 5000 is tough resulting in an exceptional cut-through resistant material.

FEATURES AND BENEFITS

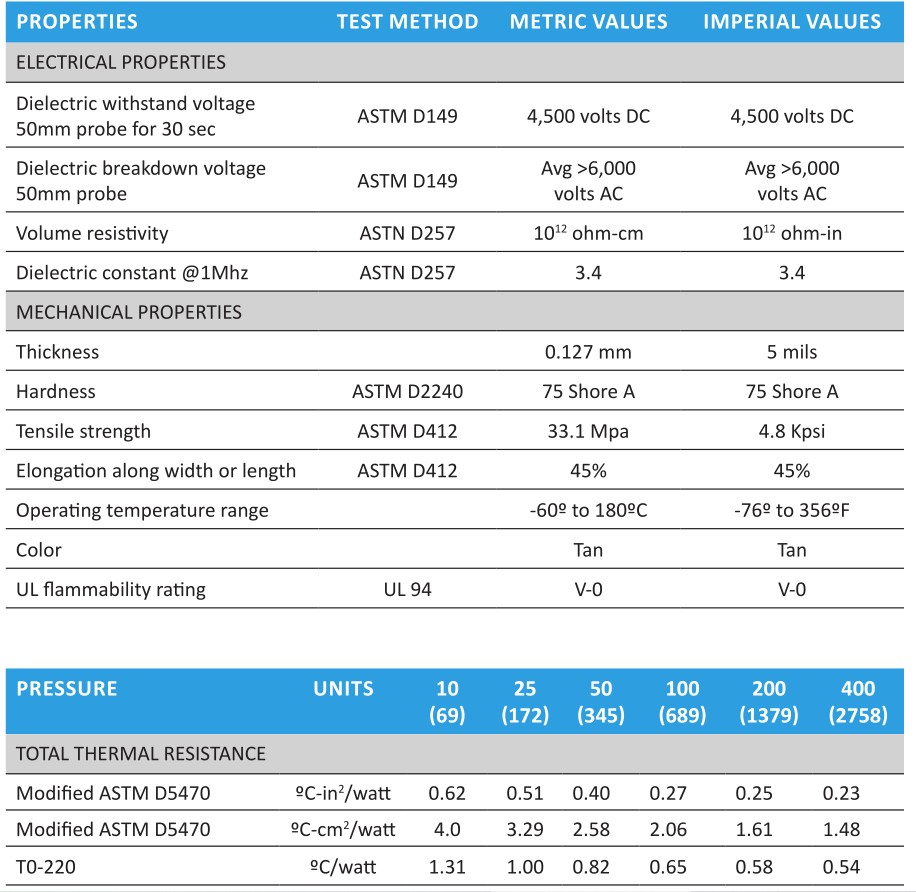

•  High dielectric breakdown voltage of 6,000 volts

•  Film base resistance cut through

•  Thermal resistance of 0.40ºC-in2/watt @ 50 psi clip

   pressure

•  Thermal resistance of 0.23ºC-in2/watt @ 400 psi

   screw pressure

APPLICATIONS

• Switching mode power supplies

• Electrial power generators

• UPS units

Tgard™ 5000 Series Thermally Conductive Insulators

Configurations available:         • Sheet form, roll form and die-cut parts

                                                • Single-side, pressure-sensitive adhesive on request

Standard options:                    • Without adhesive (A0): 12 x 18" sheets, 12" x 65M,

                                                  12" x 30M roll or custom configuration

                                                • With adhesive (A1): 11.75 x 18" sheets, 11.75" x 30M roll

                                                    or custom configuration

Standard die cut parts: Standard part sizes for TO-220, TO-247, TO-3P, TO-3PL and TO-264

Custom die cut parts: Custom configurations available with standard tolerance of 0.5mm (0.020”). Ability to handle drawings in multiple file formats. (.DXFand .DWG preferred) or custom configuration
