HIGH THERMAL AND DIELECTRIC PERFORMANCE INSULATOR PAD

Tgard TM K52 is a high thermal and dielectric performance insulator pad consisting of aceramic filled phase change compound coated on MT Kapton film.

Tgard TM K52 phase change coating all but eliminates contact thermal resistance. The phase change coating melts at 52ºC and replaces all contact areas that contain air. Tgard TM K52-1 is ideal for applications requiring the best thermal performing insulator material.

Tgard TM K52-2 has the best balance of thermal, dielectric and cut through performance. Tgard TM K52-3 is a 3 mil MT Kapton film that provides the best crush and cut and tear re-sistance available with thermal properties that are still in the high performance category.

FEATURES AND BENEFITS

 High breakdown voltage of 4,000 – 9,000 range VAC

• Resistant to tears and cut through

• Total thermal resistance of 0.13 - 0.30

range ºC-in2/watt at 20 psi clip force

APPLICATIONS

• Audio amps

• Power modules

• Switching mode power supplies

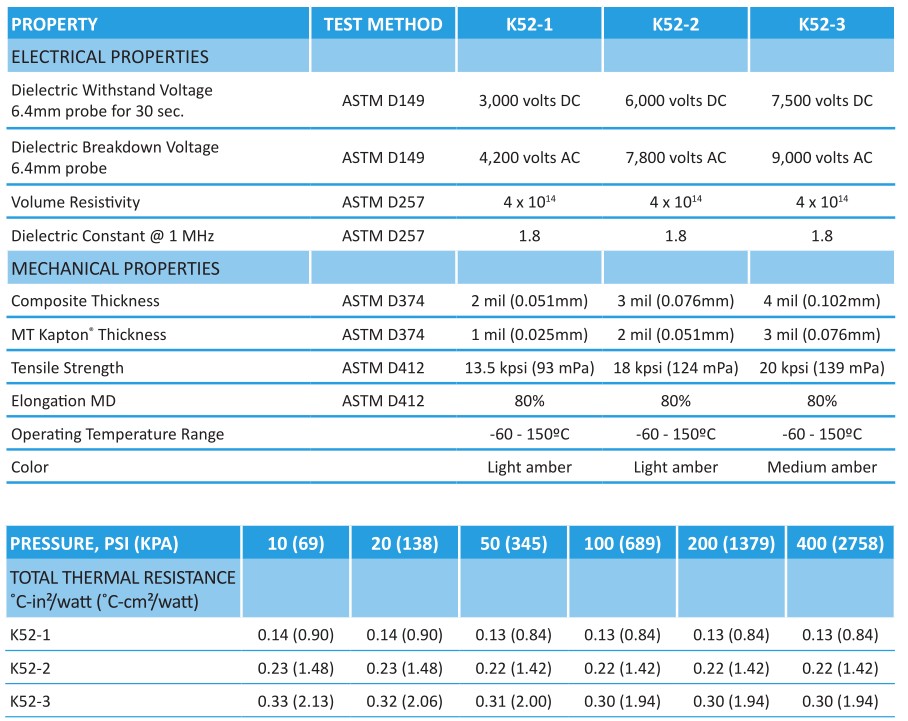

Tgard TM K52 Thermally Conductive Insulators

STANDARD DIE CUT PARTS:              Standard part sizes for TO-220, TO-247, TO-3P, TO-3PL, and TO-264

CUSTOM DIE CUT PARTS:                  Custom configurations available with standard tolerance of 0.5mm (0.020”)

                                                            Ability to handle drawings in multiple file formats. (.DXF and .DWG preferred) PRESSURE SENSITIVE

ADHESIVE:                                          Single side adhesive available on request
