PRODUCT DESCRIPTION

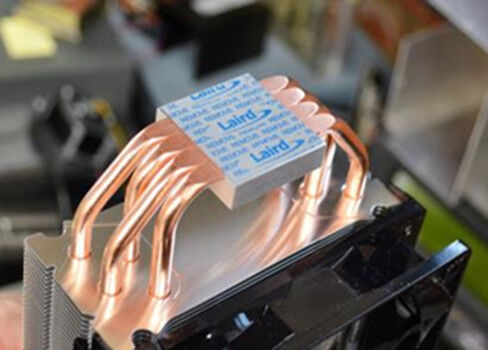

Tpcm™ 7000 is newest in Laird’s line of high-performance TIM product offerings. With a thermal conductivity of 7.5 W/mK, Tpcm™ 7000 is designed to enhance the cooling of the most rigorous thermal challenges in electronics. Softening between 50°C – 70°C, the initial pad thickness can decrease to a bondline as thin as 35µm. Coupled with superior wetting of the mating surfaces and displacing air, Tpcm™ 7000 provides industry leading lowest thermal resistance.

Tpcm™ 7000 reliability has been demonstrated though exposure to 2000 hours of various aging tests resulting in proven dependability at an operating temperature of 150°C. The specialty polymeric matrix offers superior pump out resistance when compared to thermally conductive greases and other phase change materials. Tpcm™ 7000 has been formulated to provide just the right tack, remaining on liners yet easily removeable for application.

FEATURES AND BENEFITS

• 7.5 W/mK bulk thermal conductivity

• Non silicone formulation that provides naturally tacky surface

• Fully characterized long term reliability

• No pump out

• Environmentally friendly solution that meets regulatory requirements including RoHS and REACH

•  Easy rework

AVAILABILITY

•  Four thickness: 0.125mm, 0.2 mm, 0.25mm, 0.4mm (Tpcm 7125, Tpcm 7200, Tpcm 7250, Tpcm 7400 respectively)

•  Sheets and Die Cuts, Die cut on strips w/tabs, Die cut on rolls w/tabs

•  Designed for use with the TIM Print, Refer to “TIM Print Application Guide”

MARKETS

• Graphics Card

• Desktops

• Servers

• IGBTs

• Automotive

• Memory Modules

•  Game Consoles

STORAGE CONDITIONS

Shelf life:

1 year from date of shipment in sealed bag

Storage conditions:

0 to 40C in sealed bag. No humidity requirements.

See A18223-00 “Instruction for Use” for more

details
