Tpcm™ 780 is a high performance, inherently tacky, easy to rework phase change thermal interface material. Developed specifically to meet the high thermal conductivity and low thermal resistance requirements of today’s demanding processors.

    This silicone-free material is so soft that it begins to flow as the temperature is elevated by just a small amount. Also, since no tabs are required, Tpcm™ 780 eliminates the need for expensive converting.

FEATURES AND BENEFITS

• Minimizes contact thermal resistance by filling the microscopic irregularities of the components it contacts. Begins to soften and flow at approximately      45ºC

• Designed to minimize migration (pump out) at CPU operating temperatures using a unique material formulation that softens, but does not fully change    phase

 • Silicone-free for applications that are silicone sensitive

• Outstanding thermal performance helps to ensure CPU/application reliability

• No mess due to thixotropic characteristics which prevent flow outside of interface

• Very soft at room temperature, therefore less stress on board during assembly

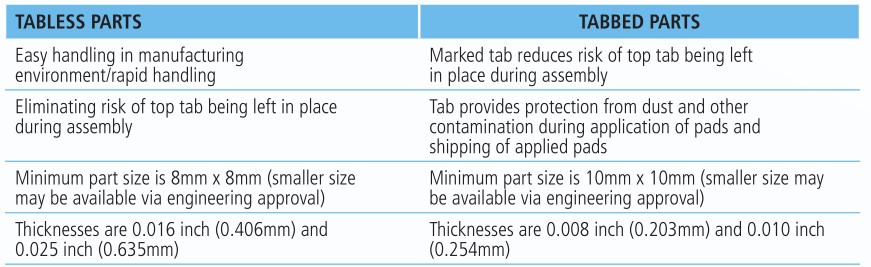

• Tabless parts make for easier handling in the manufacturing environment

• RoHS Compliant

• 94V0 UL Flammability Rating

• Naturally tacky at room temperature, requiring no adhesive

• Heat sink preheating not required

• Exceptionally high reliability during storage and after installation

APPLICATIONS

• Graphics Cards

• Notebooks

• Desktops

• Servers

• Memory Modules

• Automotive

• IGBTs
