ENVIRONMENTALLY FRIENDLY THERMALLY CONDUCTIVE GREASE

TgreaseTM 880 is a silicone based, high performance thermal grease designed to meet the thermal, reliability and price requirements of high end CPUs, GPUs and custom ASICS chips.With superior wetting properties to comparable grease, TgreaseTM 880 fills the microscopic irregularities of the components it contacts, resulting in very low thermal resistance.

TgreaseTM 880 is stable and does not dry out, settle or harden. A full reliability study can be provided upon request. TgreaseTM 880 meets all environmental requirements including RoHS.TgreaseTM 880 is supplied in half kilogram, one kilogram and three kilogram containers.

APPLICATIONS

• CPUs (Notebooks, Desktops, Servers)

• Custom ASICS Chips

• GPUs (Graphics Chips)

• Northbridge Chipsets

• Integrated Gate Bipolar Transistors (IGBT)

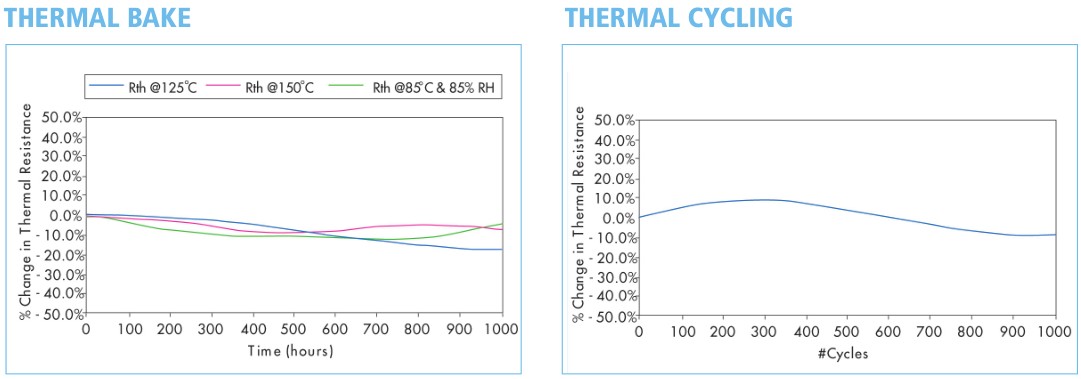

For a full TgreaseTM 880 Reliability Report Reference A15296-00.

OPTIONS

TgreaseTM 880 is available with a solvent option to aid in screen printing and other application methods.

Data for design engineer guidance only. Observed performance varies in application. Engineers are

reminded to test the material in application.
